Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HK
  • Model Number: HK-S0708M-kit
  • Pixels: 1280(H)*720(V)
  • Input: 8chs Video&1ch Audio
  • Recording Resolution: 8ch 720P AHD/960P Real Time Recording
  • Brower: Support IE, Chrome, Firefox,Safari
  • Playback: 8 chs Playback
  • Support Mobile Phone: smart phone monitoring, Support IPhone, Andorid, Ipad etc.
  • Hard Disk Storage: 1 HDD(Max support 4TB each)
  • Outputs: 2 USB, 1 VGA, RJ45,HDMI
  • accessories: 18m BNC+power Wire, 12V5A Camera Power, 8CH Power Distribution Wire
  • Camera: 1000tvl(4pcs x ir indoor dome camera +4pcs x ir outdoor bullet camera)

Packaging & Delivery

Packaging Details: Neutral package
OEM packing
Delivery Detail: 3

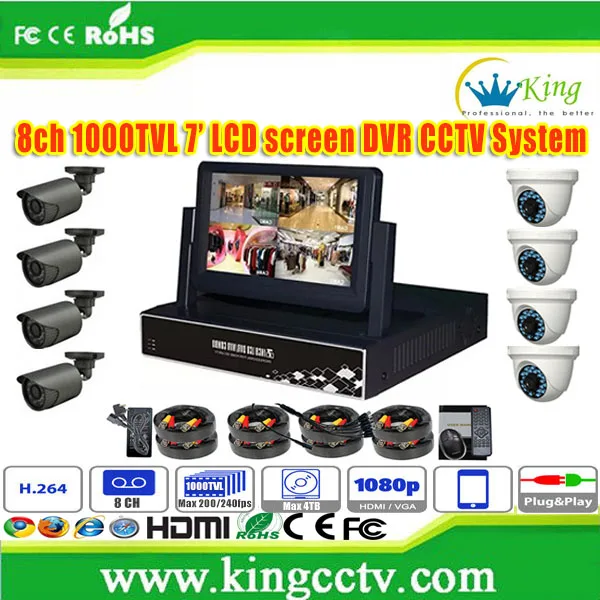

NEW 7inch LCD Screen HD DVR h 264 Network Home Security 8 Channel AHD CCTV Camera System


Product Description



W What is the Specifications of our products?

NEW 7inch LCD Screen HD DVR home security 8 channel cctv camera system

DVR Features



  1. 7inch LCD H.264 Network AHD/NVR/DVR HK-S0708M
  2. DVR with built-in lcd monitor
  3. H.264 compression algorithm ideal for standalone DVR
  4. Support 1CH 960P/720P Real Time Playback or 2ch 1080P/ 960P/ 720P Real Time Playback
  5. Support 4/8CH 1080P at 25fps,4/8CH 960H at 25fps.Real Time Recording
  6. Supports SATA HDD (maximal value of each hard disk is up to 4TB)
  7. Support Multi-language: English, Italian, Turkish, Russian, French, Portuguese, Spanish, Polish, Hebrew, Thai, Traditional Chinese, Japanese.
  8. New standard for professional DVR with high performance and competitive price.
  9. Support Mobilephone Surveillance with Symbian , Windows CE,Iphone , Google Android
  10. Dual encoding streams flexible for network transmission and mobile phone monitoring.
  11. Multiple function: Live, Recording, Playback, Backup & Remote access.
  12. Smart video detection: motion detection, camera blank, video loss.
  13. Support 3G & WIFI USB Modem.



Model No. HK-S0708M
Compression FormatH.264 / G.711
Operation SystemEmbedded LINUX
Main Processor Hi3520D
Display screen 1/4/8/9ch screen
Analog Video Input BNC x 8, 1.0VP-P,75O
IP Input 16CH IPC Input
Video OutputMonitor:D1;HDMI, VGA:(1280*1024, 1024*768, 1280*720)
Video Standards
PAL(200f/s); NTSC(240f/s)
Playback quality720P/960P/1080P
Encode capability 8ch 720P AHD/960P Real Time Recording
Hybrid: 2ch D1 Analog + 1ch 1080P IP + 1ch 720P IP
Pure network: 2*1080P/4*720P/8*960H/1*1080P+1*720P+2*D1
Record Quality 8*960H at 25fps/8*D1
Playback quality 8*D1 at 25fps/1*960H
Decode capability 2ch 1080P/ 960P/ 720P Real Time Playback
Recording ModeManual / Timer / Motion
Audio Input/Output1 audio input, 1 audio output (RCA)
Hard Disk Storage1 * SATA HDD (capacity up to 4TB)
Multiplex OperationLive display / record / playback / backup / network operations
Backup DeviceUSB 2.0 flash drive / USB moving Hard disk / Network
Network ProtocolOnvif2.0 or above, DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center
Ethernet10/100 Base-T. Supports remote control and live view via Ethernet
Web InterfaceInternet Explorer (10 users access simultaneously)
Operating System: Windows Vista / XP / 2000,Win 7
VGA InterfaceBuilt-in
Video Loss DetectionYes
PTZ Control1*RS485 port, Support more than 20 kinds protocols.
USB Port2*USB 2.0 port
Power Source12V/3A DC(±10%)
Dimension1U, 250mm(L)* 240mm(W)* 46mm(H)
Working Temperature-10 ~ +55°C
Working Humidity10%- 90%
Weight2.6KG(No HDD)



Cameras Features

 x 4pcs

  1. Sony CMOS 1000TVL High Resolution CCTV Camera Waterproof IR Bullet HK-F3100C
  2. 1/3" Color CMOS
  3. The highest horizontal resolution 1000TVL
  4. Min.illumination 0.01Lux/F1.2(0Lux IR ON)
  5. ICR filter switching function, day&night surveillance
  6. Max.IR distance 22m
  7. Conch appearance, multiple angles can be adjusted
  8. Lighting protection
  9. Waterproof level:IP66
  10. Lens: 3.6/6mm M12
ModelHK-F3100C
Color CMOS IR Metal Conch Dome Camera
Pickup Device1/3” Color CMOS
Pixels1280(H)*720(V)
Resolution1000TVL
Min.illuminationColor:0.01Lux/F=1.2,Black and White:0Lux (IR ON)
White BalanceAuto
Back Light CompAuto
S/N Ratio>50dB
Electronic ShutterAUTO/ 1/50(1/60)-1/100,000sec
Day&NightICR Cut
Operating Temp.-20℃ ~ 50℃
Sync. SystemInternal Sync
Video OutputCVBS/1.0Vp-p/75Ω
Infrared Lamp30 pcs φ5/850nm Infrared Lamp
IR Distance22m
Power SupplyDC12V ±10%
Power Consumption100mA/220mA(IR ON)
Lens3.6/6mm M12
size172*65.7mm
weight0.48kg

x 4pcs

Sony CMOS 1000TVL High Resolution CCTV Camera indoor IR Dome HK-SW3100C

  1. Features
  2. 1.indoor IR dome CCTV camera
  3. 2.1/3'' color CMOS
  4. 3.1000TVL with ICR filter
  5. 4.3.6/6mm lens
  6. 5.24*F5 LEDs, 20m IR view
  7. 6.Minimum illumination:0.1Lux/F1.2(0Lux IR ON)
  8. 7.Built-in three-dimensional scaffold,multiple angle adjustable
  9. 8. lightning protection
ModelHK-SW3100C
CMOS color IR dome camera
Pickup device1/4” Color CMOS
Pixels1280(H)*720(V)
Horizontal Resolution1000TVL
Min.illumination color: 0.01Lux/F=1.2 black & white:0.001Lux/F=1.2(0Lux IR ON)
White BalanceAuto
Back Light CompAuto
S/N ratio>>50dB
Electronic shutter AUTO/ 1/50(1/60)-1/100,000sec
Day & NightICR cut
Operating Temp.-20°C to 50°C
Sync.systemInternal Sync
Video outputCVBS/1.0Vp-p/75Ω
Infrared lamp24xφ5/850nm
IR distance20m
Power SupplyDC12V ±10%
Power Consumption70mA/270mA(IR ON)
Lens3.6/6mm M12
Weight0.48KG

Packing details

7inch LCD Screen DVR home security HD 8 channel cctv camera system

1 x 8CH H.264 Standalone DVR With 7" LCD Monitor
8 x 1/3" inch color CMOS Chip, 1000TVL, Security CCTV CMOS IR Color Cameras
4 x Special Camera Bracket
1 x 12V5A Special Camera Power
1 x 8CH Power Distribution Wire
1 x Power Adapter 12V5A for LCD DVR
1 x Software CD
1 x User's Manual and warranty card
1 x USB mouse
1 x IR Controller
1 x USB Cable
8 x 18m BNC Wire



W What is the Applications of our products?



Packaging & Shipping



P Packaging &Shipping,Trade Terms





Our Services



W Why choosing us?



1. More professional, better quality.

We engaged in software & hardware development, manufacturing and sales for security & safe products.( CCTV camera, IP camera, DVR, NVR ) for about 10 years.



2. OEM/ ODM service available.

  Any your idea on camera we can help you to design and put in solution.

3.Strong Tech support.

* Presale: product consultation and solution design can be provided.

* After sale: We offer a 2-years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.

* We can also provide customized products, project designs, our project partner like: Shell in Japan, Barranquilla Harbour in Colombia, Greece National Park..



3. Strict Quality Control :

All of our electronic parts will stay in constant temperature machines more than 48 hours before assembly, all products wiil be fully inspected before shipment.

with CE, ROHS, FCC approval.
