Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: KingCCTV
  • Model Number: HK-AHD5116F
  • Product name: Factory price 16 channel standalone dvr h 264
  • Main Processor: Hi3531
  • Operating System: LINUX
  • Playback quality: Max support 1080P under HVR and NVR mode
  • Camera Input: 720P*16/AHD-M*16
  • Encode capability: 16*720P
  • Motion detection: Each channel can set 192 (16*12)detection area
  • USB port: 2*USB2.0
  • HDD port: 2 SATA port (2*4T)
  • Power Consumption: less than 5W(not include H.D.D.)

Packaging & Delivery

Packaging Details KingCCTV standard packaging, 4.5KG
Delivery Time Shipped in 3 days after payment

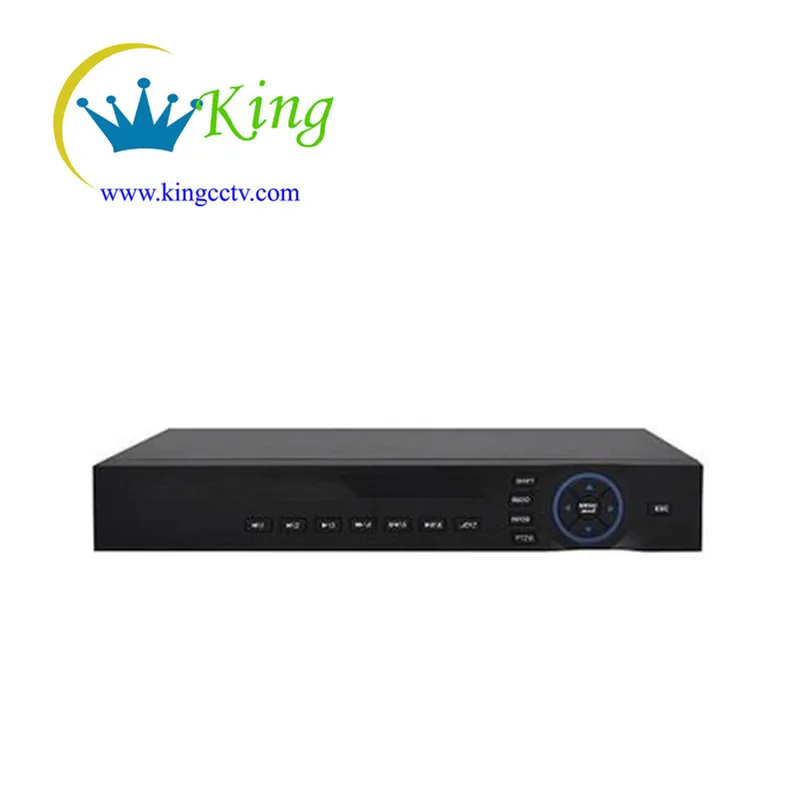

Factory price 16 channel standalone dvr h 264





Product Description



Specification--16 channel standalone dvr h 264



Specifications



ModelHK-AHD5104FHK-AHD5108FHK-AHD5116FN/A
SystemMain processorHi3515CHi3531
Operating systemEmbedded LINUX operating system
System resourceMulti-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
InterfaceOperation interface16 bit real color GUI interface support mouse operation
Display screenTake all analog input as an example, others are depended on the selected channel mode
1/4 screen1/4/8/9 screen1/4/8/9/16 screen1/4/8/9/16/24 screen
VideoVideo standardPAL (625 lines, 50fps); NTSC (525lines, 60fps)
Image encodeH.264(High Profile)
Monitor qualityMonitor: D1; VGA: High Definition; HDMI: High definition
Playback qualityMax support 1080P under HVR and NVR mode
Max 720P Under local analog input mode:
720P*4720P*8720P*16
Encode capability4*720P8*720P16*720P24*720P
Decode capability4*720P8*720P16*720P24*720P
Multi-mode video inputLocal analog input:
720P*4/AHD-L*4720P*8/AHD-M*8720P*16/AHD-M*16720P*24/AHD-M*24
Local analog + network digital input: 720P(AHD)*4+720P(IP)*4
All network digital input:
720P*8+1080P*1/1080P*4/960H*20
Motion detectionEach channel can set 192 (16*12)detection area; can set multi-level of flexibility (for local analog channel only)
AudioAudio compressionG.711A
Bidirectional talksupport
Record and playbackRecord modemanual>alarm>motion detection>timing
Local playback720P*4720P*8720P*16
Video searchTime,date,event,channel search
Storage and back upSpace occupationVideo:CIF 4~5G/day*channel, D1 16~20G/day*channel; 960H 12G~20G/Day*CH
audio:691.2M/day*channel
Video storageLocal HDD ,Network
Back up modeNetwork backup,USB portable HDD,USB DVD/RW,SATA DVD/RW
InterfaceVideo input4ch BNC8ch BNC16ch BNC32ch BNC

Video output

1ch BNC,1ch VGA,1ch HDMI
Video Loop outNot Support
Audio input1ch RCA(200-2800mV,30KΩ)4ch RCA(200-2800mV,30KΩ)
Audio output1ch RCA(200-3000mV,5KΩ)
Alarm inputN/A(4chs Optional)
Alarm outputN/A(1ch Optional)
Network interfaceRJ45 10M/100M self-adaptive Ethernet port
PTZ control1 RS485; support multi kinds of PTZ protocol
USB port2*USB2.0
HDD port1 SATA port (1*4T)2 SATA port (2*4T)
Wireless portN/A3G,WIFI(extension via USB port)
OtherPower12V/3A
Consumptionless than 5W(not include H.D.D.)
Working Temperature0℃-+55℃
Working Humidity10% ~ 90%
Dimension(mm)L233 * W300 * H45
Package
5 sets/Carton(457*455*308)
Weight1.46KG







Features--16 channel standalone dvr h 264





Feature

  1. 4/8/16/24ch AHD (Analog High-Definition) video & 4ch IP camera inputs
  2. Adopt 75-3 (or more) coaxial, transmission distance up to 500 meters; Low-cost, long distance, without delay, high efficiency, noise immunity and easy installation.
  3. Easily upgrading the old analog systems to the Mega high-definition system without changing the installed coax cables and equipment
  4. Support analog video, Analog HD video, network HD video input
  5. AHD: 4ch@AHD_L,8/16/24ch@AHD-M
  6. IPC: Max 50fps@1080p, 100fps@720p, 200fps@960H
  7. HDMI output up to 1080p, VGA
  8. alarm in & relay out Optional, RS485
  9. 4/8/16ch sync real time playback
  10. 1/2 SATA, 2 USB, 1 RJ45(1000M)
  11. Support Multi-language: English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc
  12. Support multi-browser: IE, Chrome, Firefox, Safari
  13. support 3G & WIFI extension
  14. support P2P,cloud service

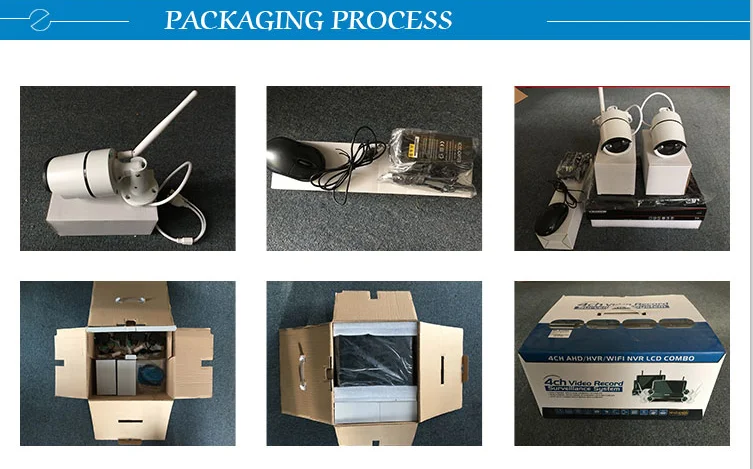

Packaging & Shipping





Our Services

Considerate Service--16 channel standalone dvr h 264

OEM and ODM are both acceptable

Sample order is acceptable

Payment terms: Paypal, T/T, Western Union

Warranty: 2 YEARS

Certification: CE, FCC, RoHS

Lead time: 3-25 days since purchasing date

Note: In case of not stock, you can do 30% as deposit, and pay 70% when ready.





Adantage--16 channel standalone dvr h 264

1.Our product line includes CCTV Camera, IP Camera, PTZ Camera, Network Camera, AHD Camera, NVR, DVR and all kinds of accessories.

2. All of our products are factory direct selling. With our own factory, we strictly monitor the price and quality in order to meet customers's requirements.

3. We have accomplished the following big projects:

  • CCTV Surveillance for Greece National Park
  • CCTV Surveillance for Jewish Historical Museum Amsterdam
  • CCTV Surveillance for Barranquilla Harbour in Colombia
  • CCTV Surveillance for Shell in Japan



Company Information

     16 channel standalone dvr h 264

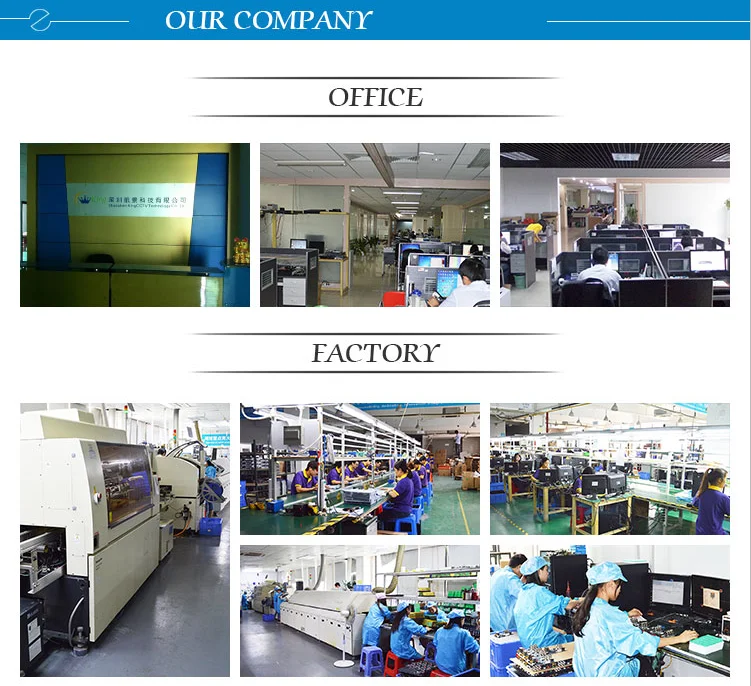

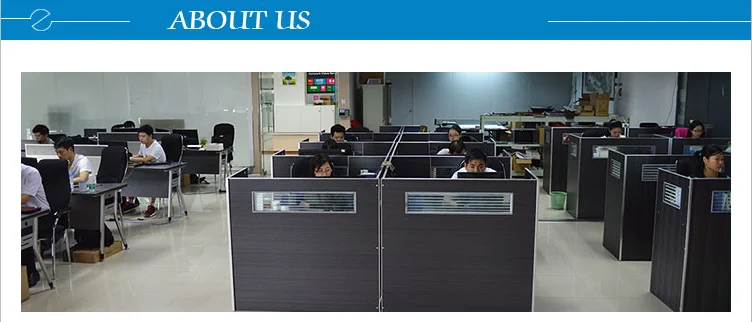

        Shenzhen KingCCTV Technology Co., Ltd. is a high technology enterprise, engaged in software & hardware development, manufacturing and sales for security & safe products.

        Our factory is in Yindafeng Industry Park of Longgang District of Shenzhen. As our business extended, in order to provide more products and better service, we established a Greece Branch on January of 2008, and established a USA Branch in Senoia GA on October of 2012. We mainly sell, develop and manufacture DVR, HDVR, NVR, CCTV Camera, IP Camera, PTZ camera, etc.

        Due to the hard work of all staffs in KingCCTV, and the continuous supports from our extensive customers, we have already achieved outstanding accomplishments in the past years. Here we deeply appreciate that it's only the customer's success which makes KingCCTV successful. So we would like to cooperate with you in the long run and create a brilliant future for all of us.







Welcome to vist our factory anytime you like





Contact

   16 channel standalone dvr h 264



Shenzhen KingCCTV Technology Co.,Ltd

Overseas Marketing Sales

Edison Tang

Mail: sales6(at)kingcctv.com

Skype:kingcctv-sales6

Whatsapp:18320821085

WeChat:281481464





Welcome to inquiry



FAQ

16 channel standalone dvr h 264

(1)What is your MOQ?

Edison: Dear, for sample order, there is no MOQ. From second order, at least 50 pcs per order.

(2)How about delivery time?

Edison: We always make the shipment by DHL,UPS,Fedex. About 3-25 business days after confirming your payment.

(3)Payment terms?

Edison: We accept T/T, Paypal, Western Union payment.

(4)Can I be your exclusive representative?

Edison: Sure, dear. You are welcome to be our agents in your market. We have official contract to sign. Till now, we have sold our products to more than 40 countries.

(5)How about warranty?

Edison: All of our products are of 2 YEAR warranty.

(6)Can you do OEM/ODM?

Edison: Yes, both OEM and ODM services are acceptable and we can also print your logo and make your own packaging according to your requriements.
