Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Hyking
  • Model Number: HK-IR20CH -1080P
  • Type: IP Camera
  • Style: Dome Camera
  • Sensor: CMOS, 1/2.8" Exmor CMOS PTZ
  • Technology: Pan / Tilt / Zoom
  • Special Features: Waterproof / Weatherproof
  • Product Name: outdoorpoe 20x optical zoom pan tilt high speed ptz ip security camera
  • Effective Pixels: 2.0Megapixel(1920*1080)
  • Optical Zoom: 20X Optical Zoom, 12X Electronic Zoom
  • Horizontal Angle of View: 2.8~48
  • System: Embedded RTOS design, dual core 32-bit DSP
  • Communications Protocol: TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP
  • S/N Ratio: > 50dB
  • Privacy Zone: YES
  • ONVIF: 2.2 ptz

Packaging & Delivery

Packaging Details: outdoor poe 20x optical zoom pan tilt high speed ptz ip security camera ,
Netural packing , gifi box
Delivery Detail: Regular 1-3 days

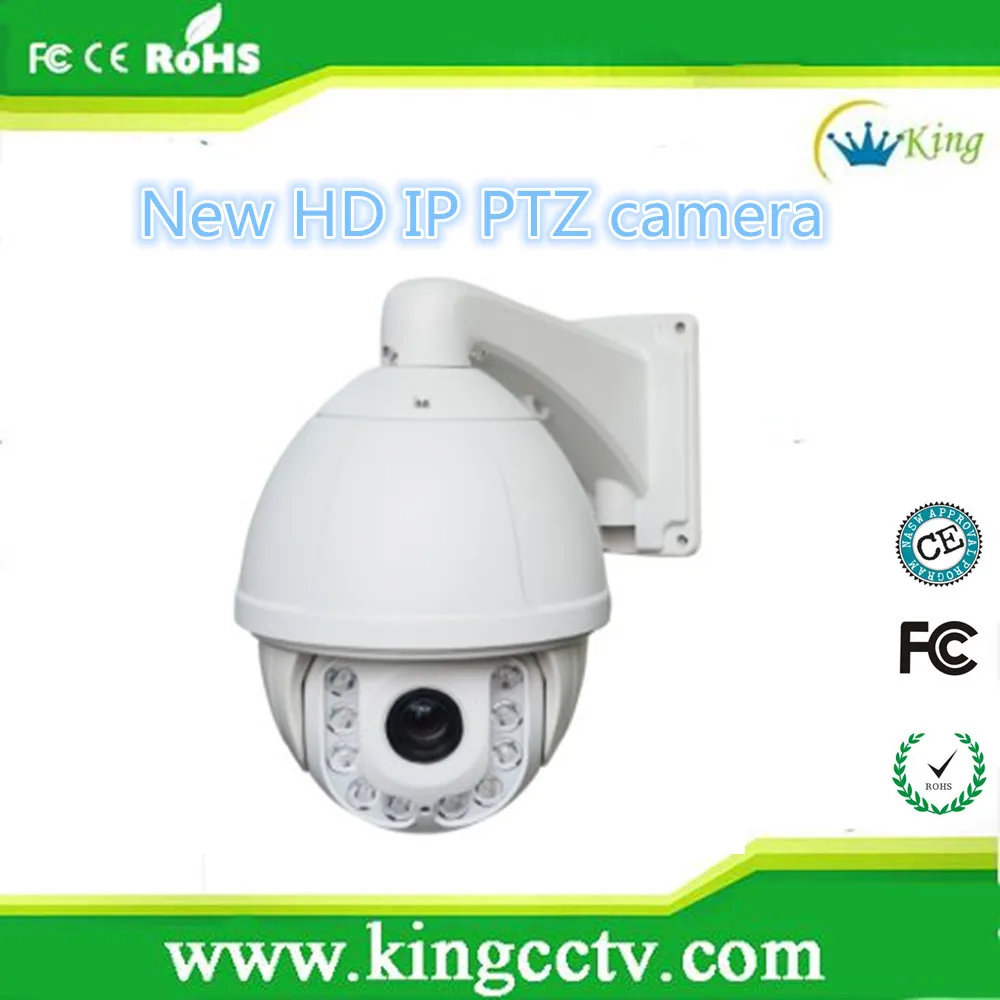

 outdoor poe 20x optical zoom pan tilt high speed ptz ip security camera









W What is the Feature of our Products?
outdoor poe 20x optical zoom pan tilt high speed ptz ip security camera

  1. PWM function,intelligent IR illumination & power consumption is variable,dependant the zoom factor;
  2. 2.0 Magapixel, 1/2.8 SONY IMX222 CMOS Sensor;
  3. 20x optical zoom;
  4. IR distance 150M; Multiple languages for OSD menu, English, Spanish etc.;
  5. 7" Double layer metal body construction, waterproof IP 66;
  6. IP module: 20x IP Module,can full compatible with Hikvision Protocol ;
  7. Optional , 4 Alarm inputs and 2 alarm outputs.



W What is the Specifications of our products?







ModelHK-HT-IR20SN-1080PHK-HT-IR20CH-1080P
All-In-One CameraSony 6300 All-in-One HD CameraChina All-in-One HD Camera
Sensor1/2.8" Exmor CMOS1/3" CMOS
Effective Pixels2.0M2.0M
Resolution1080P1080P
Lensf=4.7~948mm
Zoom20X Optical Zoom, 12X Electronic Zoom20X Optical Zoom
Minimum illumination0.01Lux/0.001Lux0.01Lux/0.001Lux
Horizontal Angle of View2.8~484.7~52.2
S/N ratio> 50dB
Electric shutter1/50~1/10000s1/50~1/10000s
Privacy ZoneONON
IR InduceYESYES
Color to Black/WhiteYesYes
WDRYesYes
SystemEmbedded RTOS design, dual core 32-bit DSP
VideoH.264 main profile, support dual stream, AVI format; support 0.1M~6Mpbs bit rate adjustable; support 1~30fps adjust
ResolutionMain stream: 1920*1080;Sub stream: 704*576(D1)
ONVIF2.2
Communications Protocol

TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP

Software Control

IE, CMS, Management Platform

Mobile View(optional)

Support Windows, Symbian, iPhone platform smartphone

Horizontal Rotation Speed

200°/s

Horizontal Rotation Range

360°

Tilt Rotation Speed

100º/s

Tilt Rotation Range

90°

Auto Flip

Horizontal 180°, Vertical 180°

Auto Control IR LED

PWM

Preset Points

220

Guard Tours

4 groups

Guard Points

Max.16 points, dwell time user selectable

PWR On Action

Memory/Pattern 1/Tour 1/360° scan/A-B scan/Preset 1-8/None

Pattern Scan

4 pcs

Time Scheduling Function

8 tasks

Power SupplierAC 24V 3A
Heater & BlowerAuto temperature control
Power ConsumptionLess than 25W
Lightning ProtectionTransient voltage 6000V
Temperature Operation-40 TO 60 °C;





P Product Photos







W What is the Effect image of our Products?

 outdoor poe 20x optical zoom pan tilt high speed ptz ip security camera

KingCCTV VS TOP 10
Video Image comparision between KingCCTV with Top 10 XXhua


 P Packaging &Shipping,Trade Terms

 W Why choosing us?



1. More professional, better quality.

We engaged in software & hardware development, manufacturing and sales for security & safe products.( CCTV camera, IP camera, DVR, NVR ) for about 10 years.



2. OEM/ ODM service available.

  Any your idea on camera we can help you to design and put in solution.



3.Strong Tech support.

* Presale: product consultation and solution design can be provided.

* After sale: We offer a 2years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.

* We can also provide customized products, project designs, our project partner like: Shell in Japan, Barranquilla Harbour in Colombia, Greece National Park..



4. Strict Quality Control :

All of our electronic parts will stay in constant temperature machines more than 48 hours before assembly, all products wiil be fully inspected before shipment.

with CE, ROHS, FCC approval.
